Overview

Collapse all Expand all

• About View
  • Edinburgh Futures Institute is a very large building with five floors.
  • There are five lifts and five main staircases within the building.
  • The levels are signed as 0, 1, 2, 3 and 4.
  • There is internal step-free level access between Edinburgh Futures Institute and Canopy Kitchen and Courtyard on level 1.
  • View information on Edinburgh Futures Institute.
• Parking and Public Transport View
  • The venue does not have its own car park.
  • The nearest train station is Edinburgh Waverley.
  • The nearest bus station is Edinburgh Bus Station.
  • For the latest travel options and information you can plan your travel using Google Maps (opens new tab).
  • View information on getting here (opens new tab) .

You are on Getting Inside. Skip to the next section.

Getting Inside

• The approach to the building is step-free via slight slopes.
• There is a slight slope on Middle Meadow Walk when approaching from Lauriston Place, and a very slight slope when approaching from The Meadows.

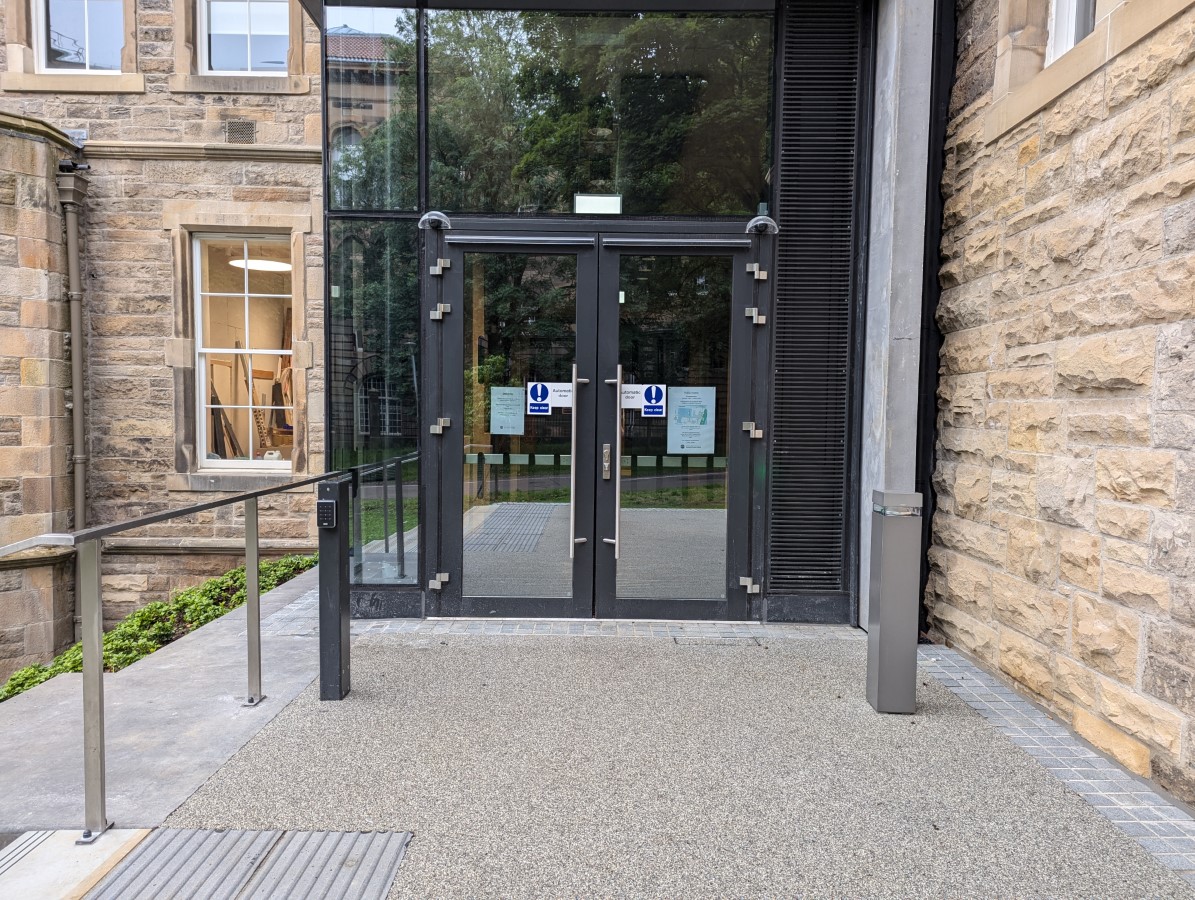

• Edinburgh Futures Institute has four external entrances. The east entrance on Middle Meadow Walk provides step-free ramped access to level 1.
  The north entrance on Lauriston Place provides step-free ramped access to level 2.
  The south entrance on Porter’s Walk and west entrance on Nightingale Way provide step-free level access to level 0 but are EFI swipe card access entry only.
  There are automatic doors at all entrances.
  .
• The north and south entrances are signed with the building name.
  The east and west entrances are not signed.
• The east entrance off Middle Meadow Walk provides step-free level access to Level 1 and lift 005 adjacent to the Canopy Kitchen & Courtyard.
  The north entrance off Lauriston Place provides step-free ramped access to the main reception foyer on Level 2.
• Edinburgh Futures Institute can also be accessed via the Canopy Kitchen and Courtyard off Middle Meadow Walk which has its own entrance with step-free level access and an automatic door.

You are on Getting Around. Skip to the next section.

Getting Around

• There is step-free access throughout the building on all levels.
• There are slopes along the main corridor on levels 0 and 1, and along the corridors leading to F wing and E wing.
  There are slopes along the main corridor on level 4.
  There are small ramps at the doorways on the corridor doors on levels 1, 2 and 3.
• There is ramped/stepped access on level 1 to Room NW1.55.
  There are three steps to access NW1.55 on level 1 from the toilet area in B wing.
  There is a ramp with handrails both sides on level 2 to access Room 2.55 from the toilet area.in B wing.
  There is sloped access to the accessible toilet on level 4 corridor, near D wing.
  There is a slight ramp to access the study area along the main corridor on level 2.
• Floor surfaces along all circulation routes are hard and smooth with some having a shiny finish.
  Some corridors have traditional stone flooring that is uneven in places.
• There are resting areas in some circulation and lobby areas with a mixture of seating.
• Wall mounted wayfinding signage is provided throughout the building.
• There are manual doors along circulation routes throughout the building.

You are on Emergency Egress for Building. Skip to the next section.

Emergency Egress for Building

Collapse all Expand all

• General Building Information View
  • Please note the fire evacuation strategy from the upper floors of this building relies on the ability to self-transfer into an evacuation chair.

You are on Toilet and Changing Facilities. Skip to the next section.

Toilet and Changing Facilities

Collapse all Expand all

• Toilet Facilities View
  • There are 25+ toilets with adaptations.
  • Toilets with adaptations are located on all levels, with both left and right hand transfer.
  • The transfer space varies between left and right in the toilets with adaptations.
  • Toilets with adaptations with automatic doors are located on level 1 (1.Z315, 1.Z607), level 2 (2.Z607), level 3 (3.Z324, 3.Z607) and level 4 (4.Z311, 4.Z606).
    Toilets with adaptations with manual doors are located on level 0 (Z607, 0.Z507, 0.Z508, 0.Z004), level 1 (1.Z409, 1.Z613), level 2 (2.Z003, 2.Z324, 2.Z310, 2.Z613) and level 3 (3.Z310, 3.Z613).
  • Ambulant toilet facilities are located on levels 0, 1, 2, and 3.
  • The male and female step-free toilet facilities are located on level 0 main corridor.
  • The gender inclusive step-free toilet facilities are located on all levels.
• Changing Places and Changing Facilities View

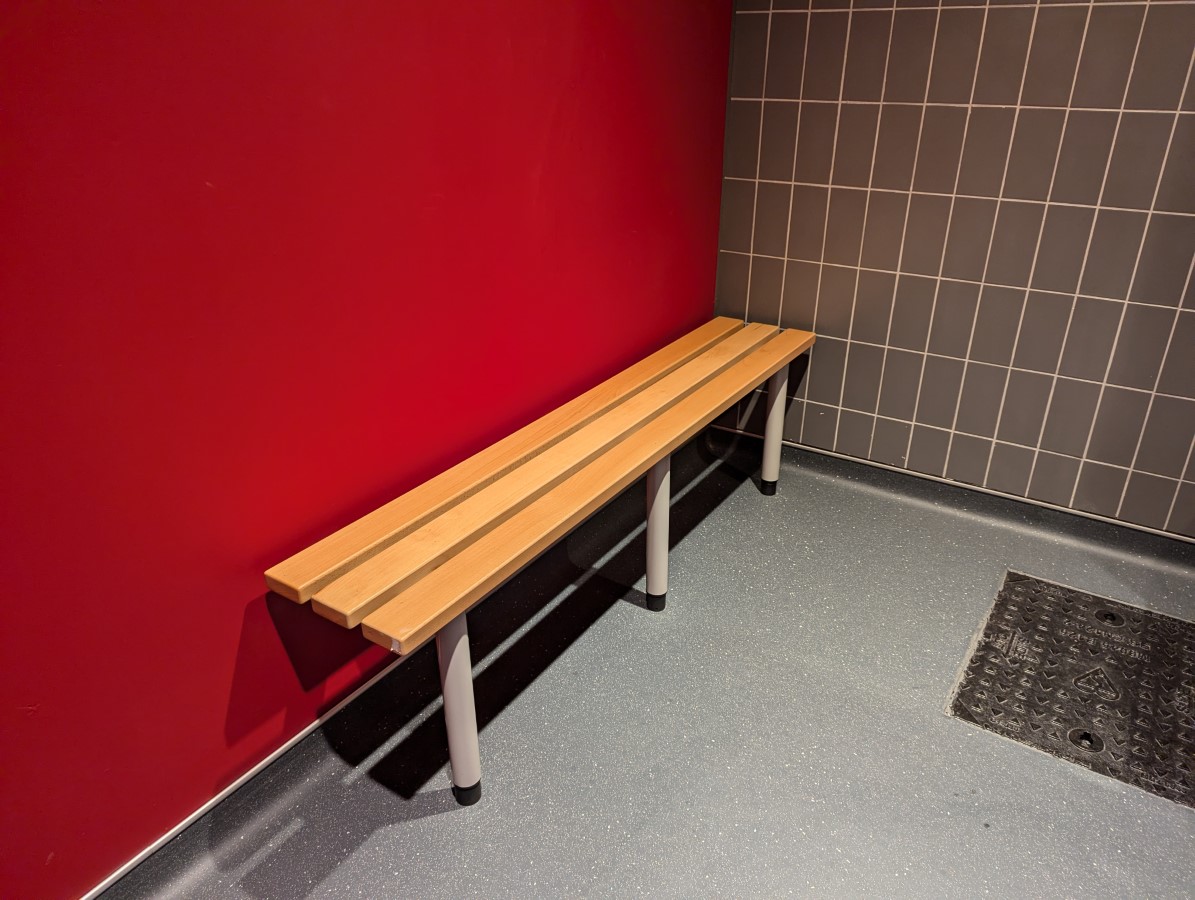

  • Standard changing facilities are located on level 0 in A wing.
  • Parent and baby changing facilities are located on levels 0 and 1.
• Washroom and Shower Facilities View
  • The shower facilities which have adaptations are located on level 0, A wing.
  • Standard shower facilities are located on level 0, A wing.

You are on Rooms and Services in the Building. Skip to the next section.

Rooms and Services in the Building

Collapse all Expand all

• Teaching Rooms View
  • View information on 0.70 Teaching Space (opens new tab) .
  • View information on 1.50 Teaching Space (opens new tab) .
  • View information on 1.52 Teaching Space (opens new tab) .
  • View information on 1.55 Teaching Space (opens new tab) .
  • View information on 2.20 Teaching Space (opens new tab) .
  • View information on 2.35 Teaching Space (opens new tab) .
  • View information on 2.55 Teaching Space (opens new tab) .
  • View information on 3.35 Teaching Space (opens new tab) .
  • View information on 4.35 Teaching Space (opens new tab) .
• Spaces View
  • View information on 0.01 Event Space (opens new tab) .
  • View information on 4.30 Collaboration Event Space (opens new tab) .
  • View information on 4.55 Small Event Space (opens new tab) .
  • View information on 4.60 Collaboration Event Space (opens new tab) .
• Other Rooms/Services View
  • View information on 1.35 Seating and Social Area (opens new tab) .
• Eating and Drinking View
  • View information on Canopy Kitchen and Courtyard (opens new tab) .

You are on Entrance (Main Entrance - Lauriston Place). Skip to the next section.

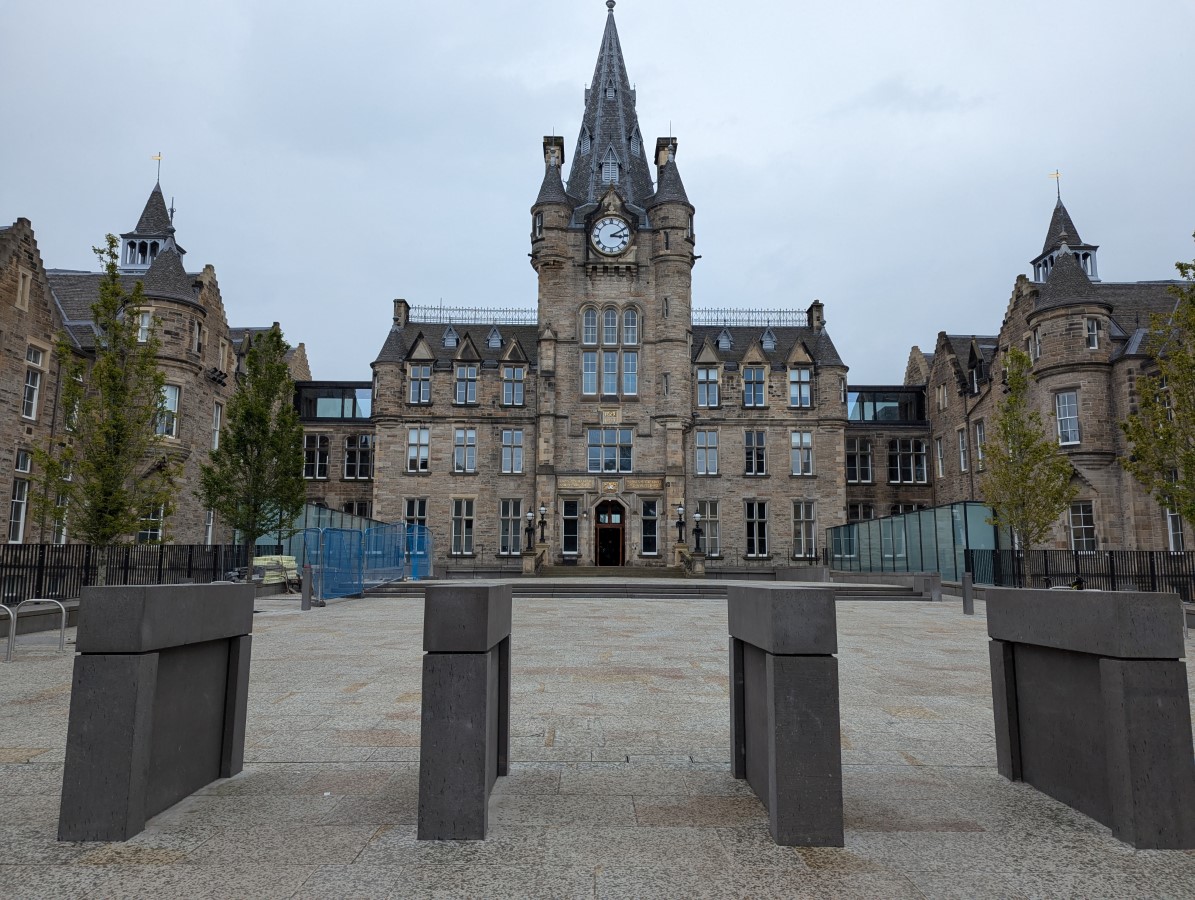

Entrance (Main Entrance - Lauriston Place)

• This entrance is located at the front of the building, off Lauriston Place.
• The approach to the entrance has bollards.
• The entrance area is clearly signed.
• There is not a canopy or recess which provides weather protection at the entrance.
• There is step-free access via ramp at the entrance.
• The ramp has a slight gradient.
• The ramp is between 75cm and 150cm wide with no handrails.
• The ramp bypasses the steps.
• There are 8 steps with no handrails.
• The steps have some clear markings.
• The steps have tactile markings at the bottom.
• The height of the steps is between 15cm and 18cm.
• The height of the highest step is 16cm.
• The depth of the steps is between 30cm and 45cm.
• The height of the second set of steps is 13cm.
• There are double automatic doors at this entrance.
• The doors open towards you.
• The width of the opening is 127cm.
• There is a small lip on the threshold of the opening.
• The doors have a high visual contrast.
• There is a push pad or push button to exit at a height of 106cm.
• There is a long ramp on both sides of the entrance.

You are on Entrance (East Entrance - Middle Meadow Walk). Skip to the next section.

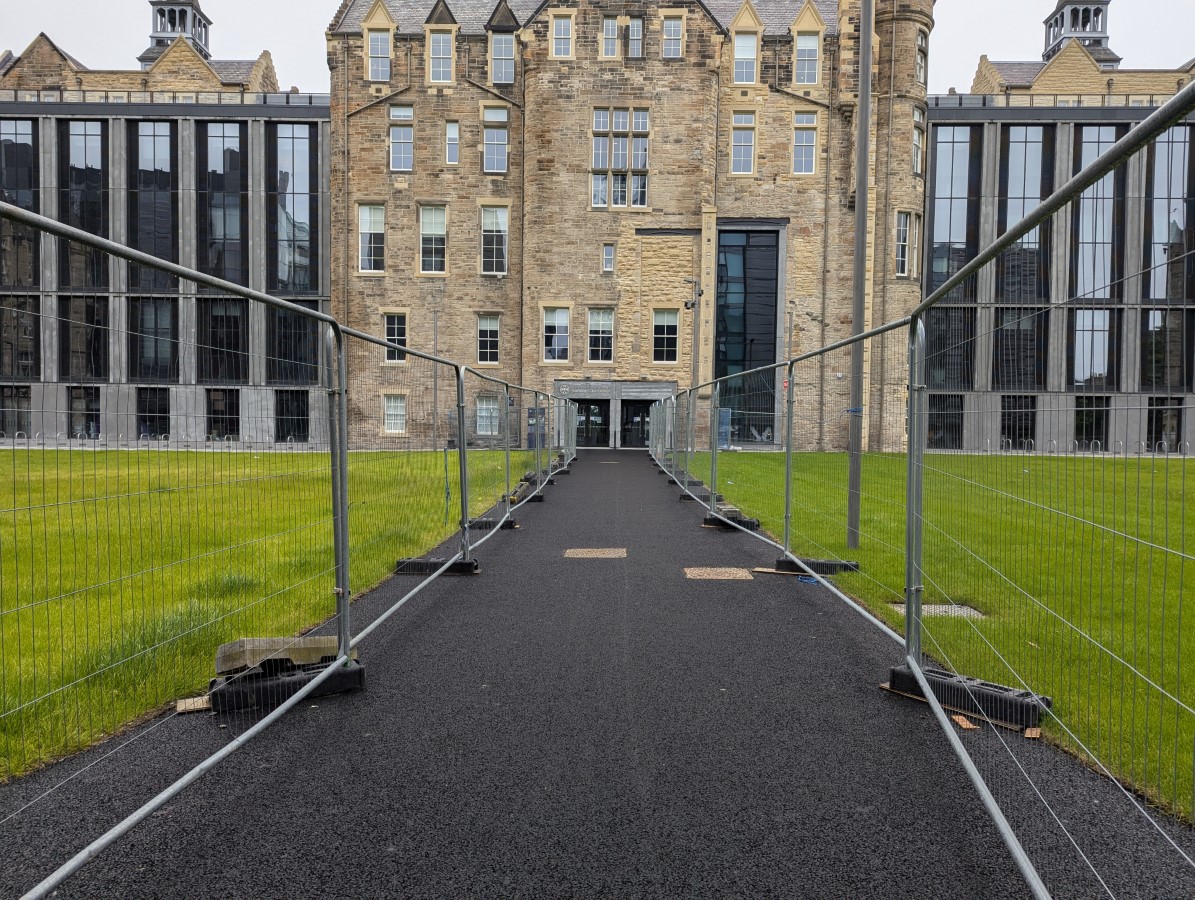

Entrance (East Entrance - Middle Meadow Walk)

• This entrance is located at the east end of the building off Middle Meadow Walk, to the left of the Canopy & Courtyard café and restaurant.
• The entrance area is not clearly signed.
• There is not a canopy or recess which provides weather protection at the entrance.
• There is step-free level access at the entrance.
• There are double automatic doors at this entrance.
• The doors open towards you.
• The width of the opening is 154cm.
• There is a small lip on the threshold of the opening.
• The doors have a high visual contrast.
• There is level access from the right of the entrance and optional stepped access from the right.
• There is an alternative stepped approach to the entrance from Porters Walk. This can be bypassed by using Middle Meadow Walk to approach.

You are on Reception. Skip to the next section.

Reception

• The reception is located on level 2, ahead as you enter through the north entrance.
• The distance from the north entrance is 7m.
• There is step-free level access to reception.
• The height of the reception desk is 113cm.
• There is a lowered section at the desk.
• The height of the lowered section is 77cm.
• There is not a hearing assistance system.
• There is no (or very little) background noise in this area.
• The flooring is shiny.
• Lighting levels were even at the time of the survey, with unshaded light sources.
• There is room for a wheelchair user to manoeuvre in the seating area (150cm x 150cm).
• There is space for an assistance dog to rest in the seating area.
• Seating available in this area includes: sofas.
• Furniture available in this area includes: coffee tables.

You are on Lift (Lift 003 - Centre). Skip to the next section.

Lift (Lift 003 - Centre)

• The lift surveyed is located on the right as you enter the building through the north entrance (Lauriston Place).
• The distance from the main entrance is 10m.
• The most accessible route to the lift has step-free level access.
• Levels 0, 1, 2, 3 and 4 are accessed by this lift.
• The lift door has a low visual contrast.
• The lift has a level manoeuvring space in front of it for a wheelchair user (150cm x 150cm).
• The external lift control buttons have tactile markings and a high visual contrast.
• All of the external lift controls are at a suitable height for a wheelchair user.
• The lift door opening width is 90cm.
• The internal dimensions of the lift are 158cm (width) x 138cm (depth).
• The internal lift control buttons have tactile markings, Braille markings and a high visual contrast.
• All of the internal lift controls are at a suitable height for a wheelchair user.
• Internally the lift has: a mirror to aid reversing, a hearing assistance alarm system, a visual floor indicator and an audible announcer.
• Lighting levels were even at the time of the survey.
• There are a further 4 lifts in the building of a similar size and design, all on the main corridor: Lift 001 by Wing A, Lift 002 by Wing B, Lift 004 by Wing C and Lift 005 by Wing D.

You are on Stairs. Skip to the next section.

Stairs

• The stairs surveyed are located on the far left of the building near D wing.
• Levels 0, 1, 2, 3 and 4 can be accessed by these stairs.
• There are 20+ steps between floors.
• The steps are clearly marked and have handrails on both sides.
• The handrails are easy to grip.
• The handrails cover the flight of stairs throughout its length.
• The handrail extends horizontally beyond the first and last step.
• The height of the steps is between 15cm and 18cm.
• The height of the highest step is 16cm.
• The depth of the steps is between 30cm and 45cm.
• Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.
• There are similar stairs adjacent to Wing A to the west side of end building, and a central staircase that serves all levels.

You are on Parent and Baby Room / Feeding Room (Level 0). Skip to the next section.

Parent and Baby Room / Feeding Room (Level 0)

• The room surveyed is located on level 0 in B wing.
• The distance from the south entrance is 32m.
• The most accessible route to the room has manual doors and slight ramps or slopes.
• There is step-free level access into the room.
• There is Braille, tactile, pictorial, written text, dementia friendly and numbered signage on or near the door.
• The door opens outwards and has a high visual contrast.
• The width of the door opening is 79cm.
• Internally the door has a high visual contrast.
• The height of the baby change facility when in use is 79cm.
• There is a toilet, a wash basin, a paper towel dispenser and a mirror in the room.
• The wash basin has a lever mixer tap.
• The room has a nappy/incontinence items bin and a sanitary bin.
• Seating available in the room includes: armchairs.
• The walls and floor visual contrast varies between low and high.
• Lighting levels were even at the time of the survey, with unshaded light sources.

You are on Toilet with Adaptations (Level 0 Main Corridor - 0.Z004 - Left Hand Transfer). Skip to the next section.

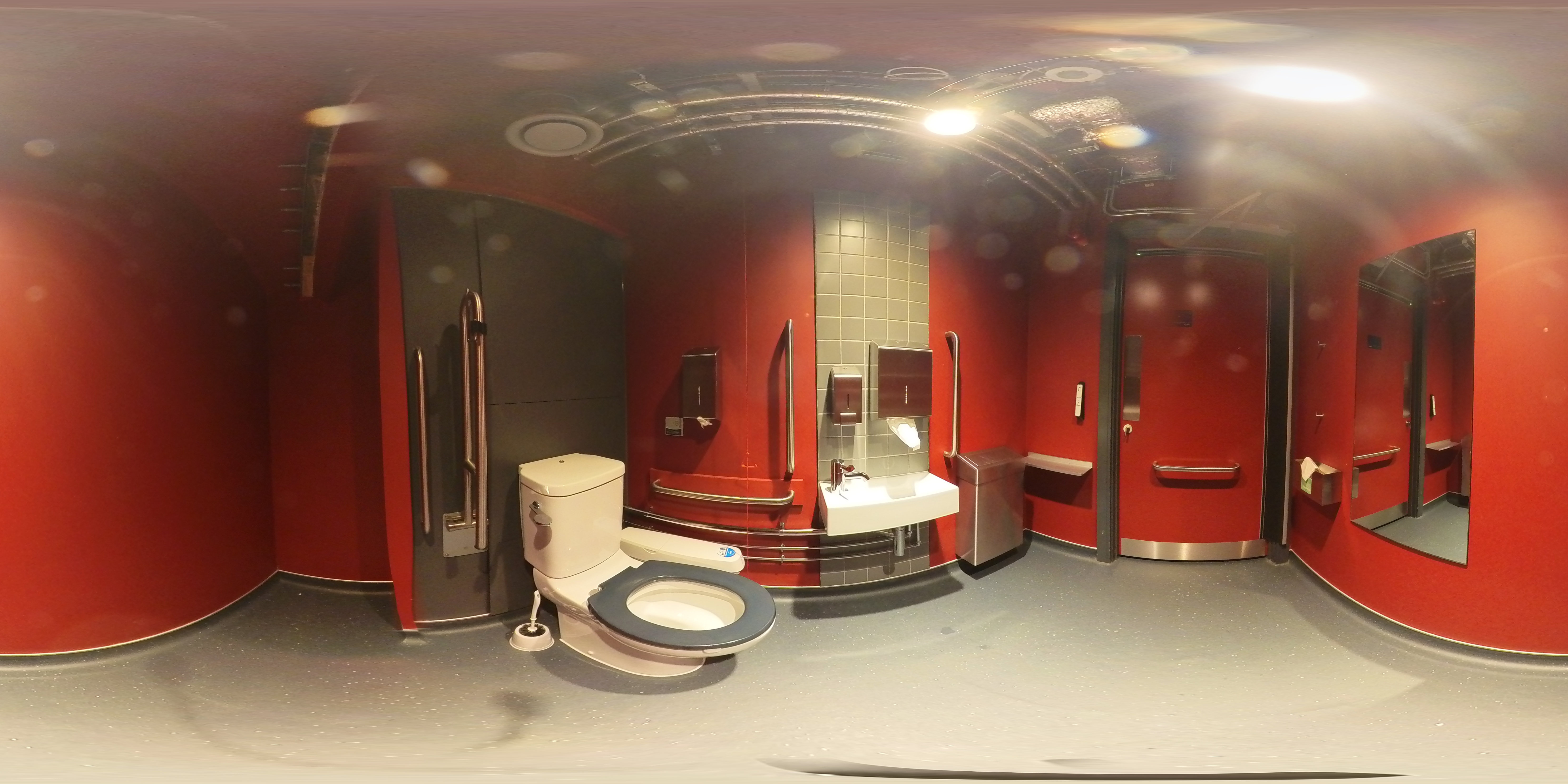

Toilet with Adaptations (Level 0 Main Corridor - 0.Z004 - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 0 on the right.
  • The distance from the south entrance is 10m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is Braille, tactile, pictorial, written text and numbered signage on or near the door.
  • The door opens outwards and has a low visual contrast.
  • The width of the door opening is 95cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a low visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 218cm (width) x 217cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 156cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a low visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a low visual contrast.
  • The toilet roll holder is 103cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a low visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 100cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 103cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 130cm and 166cm from the floor.
  • The walls and floor have a low visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade.
  • There are similar toilets on other floors.
    There are also toilets with a corner arrangement and peninsular arrangement on level 0.

You are on Toilet with Adaptations (Level 1 Wing C - 1.Z409 - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 1 Wing C - 1.Z409 - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 1 in Wing C.
  • The distance from lift 004 is 10m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is Braille, tactile, pictorial, written text and numbered signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 97cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 180cm (width) x 240cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet, however it is obstructed.
  • The lateral transfer space is 120cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 100cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a medium visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 100cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 103cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 105cm and 140cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade.
  • There are similar toilets on other floors.

You are on Toilet with Adaptations (Level 2 Main Corridor - 2.Z003 - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 2 Main Corridor - 2.Z003 - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 2, on the left as you enter through the north entrance.
  • The distance from the north entrance is 10m.
  • The most accessible route to the toilet has step-free level access.
  • There is step-free access via a very easy ramp or slope into the facility.
  • There is Braille, tactile, pictorial, written text and numbered signage on or near the door.
  • The door opens inwards and has a high visual contrast.
  • The width of the door opening is 100cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a medium visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 217cm (width) x 299cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 130cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a low visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a low visual contrast.
  • The toilet roll holder is 100cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a low visual contrast.
  • There is a wall mounted soap dispenser which cannot be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 100cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 100cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is no shelf.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 101cm and 141cm from the floor.
  • The walls and floor have a low visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
  • There are similar toilets on other floors.

You are on Toilet with Adaptations (Level 2 Wing A - 2.Z607 - Right Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 2 Wing A - 2.Z607 - Right Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 2 in wing A.
  • The distance from lift 001 is 15m.
  • The most accessible route to the toilet has step-free level access and manual doors.
  • There is step-free level access into the facility.
  • There is Braille, tactile, pictorial, written text and numbered signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 98cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 186cm (width) x 214cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the right as you face the toilet.
  • The lateral transfer space is 127cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a medium visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 103cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 100cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 100cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is a shelf, however there is an obstruction in front of it.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 105cm and 140cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
  • There are similar toilets on other floors.

You are on Toilet with Adaptations (Level 3 Wing D - 3.Z310 - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 3 Wing D - 3.Z310 - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 3 in Wing D.
  • The distance from lift 005 is 15m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is Braille, tactile, pictorial, written text and numbered signage on or near the door.
  • The door opens outwards and has a high visual contrast.
  • The width of the door opening is 97cm.
  • The door has a lever twist lock.
  • Internally the door has a high visual contrast.
  • There is a grab rail on the internal door with a high visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 200cm (width) x 209cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet, however it is obstructed.
  • The lateral transfer space is 137cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 103cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 73cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 100cm from the floor.
  • There is a wall mounted towel dispenser which can be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 100cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is a shelf, however there is an obstruction in front of it.
  • The shelf meets the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 105cm and 140cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were even at the time of the survey, with unshaded light sources.
  • There are similar toilets on other floors.

You are on Toilet with Adaptations (Level 4 Wing A - 4.Z606 - Left Hand Transfer). Skip to the next section.

Toilet with Adaptations (Level 4 Wing A - 4.Z606 - Left Hand Transfer)

Collapse all Expand all

• Location and Access View
  • The toilet surveyed is located on level 4 in wing A.
  • The distance from lift 001 is 10m.
  • The most accessible route to the toilet has step-free level access, a lift and manual doors.
  • There is step-free level access into the facility.
  • There is Braille, tactile, pictorial, written text and numbered signage on or near the door.
  • The door opens outwards automatically and has a medium visual contrast.
  • The width of the door opening is 97cm.
  • The door has a lever twist lock.
  • Internally the door has a low visual contrast.
  • There is a grab rail on the internal door with a medium visual contrast.
• Dimensions and Features View
  • The dimensions of the cubicle are 172cm (width) x 216cm (depth) and there is room for a wheelchair user to manoeuvre (150cm x 150cm).
  • There is a lateral transfer space to the left as you face the toilet.
  • The lateral transfer space is 108cm (from the side of the toilet pan).
  • There is a spatula flush on the transfer side.
  • There is a horizontal grab rail on the non-transfer side.
  • The horizontal grab rail has a high visual contrast.
  • There is a vertical grab rail on the transfer side.
  • The vertical grab rail has a low visual contrast.
  • There is a dropdown rail on the transfer side.
  • The dropdown rail has a low visual contrast.
  • The toilet seat is 48cm from the floor.
  • The toilet seat has a high visual contrast.
  • There is a wall mounted toilet roll holder which can be reached when seated on the toilet.
  • The toilet roll holder has a high visual contrast.
  • The toilet roll holder is 103cm from the floor.
  • The wash basin and taps can be reached when seated on the toilet.
  • The wash basin is 74cm from the floor.
  • The wash basin has a lever mixer tap.
  • The vertical grab rails are on both sides of the wash basin.
  • The wash basin grab rails have a high visual contrast.
  • There is a wall mounted soap dispenser which can be reached when seated on the toilet.
  • The soap dispenser has a low visual contrast.
  • The soap dispenser is 100cm from the floor.
  • There is a wall mounted towel dispenser which cannot be reached when seated on the toilet.
  • The towel dispenser has a low visual contrast.
  • The towel dispenser is 100cm from the floor.
  • There is not a hand dryer.
  • There is a pull cord emergency alarm within 10cm from the floor.
  • There is a full length mirror.
  • There is an unobstructed shelf.
  • The shelf does not meet the AccessAble criteria for Stoma Friendly Toilets.
  • The cubicle has a waste bin and a sanitary bin.
  • There are multiple coat hooks.
  • The coat hooks are 105cm and 140cm from the floor.
  • The walls and floor have a high visual contrast.
  • Lighting levels were uneven at the time of the survey, with pools of light and shade and unshaded light sources.
  • There are similar toilets on other floors.
