Maxwell Building

The University of Salford, Salford, Greater Manchester, M5 4WT

View Accessibility Symbols

Accessibility Symbols

For more information about what these symbols mean, view our Accessibility Symbols Guide.

Close this popup window.

Access Guide

Show Easy Read

Summary

  • Building View
    • Services / Facilities within the building include; Language Resource Centre, Salford Languages English Language Centre, College of Science and Technology, Think Lab, Legal Planning and Governance Directorate, HR and Finance, School of Built Environment (SOBE), Salford Business School Medical Centre, Computer Suite, Institute for Material Research, Maxwells Café Subway and Snack bar.
  • Location of Toilet/Changing Facilities View
    • Accessible toilet facilities are located on levels 2, 3, 5, 7 and 9.
    • Female standard toilet facilities are located on all floors.
    • Male standard toilet facilities are located on all floors.
    • Baby changing facilities are located on floor 3.

Getting Here

Useful Information

Rooms and Spaces Links

Rooms and Spaces Links

Rooms and Spaces Links

Building Parking

  • The building does have its own dedicated parking.
  • Building Car Park View
    • The car park can be used by Blue Badge holders.
    • There are no parking charges that apply on the day.
    • The car park is located at the front of the building.
    • The car park type is open air/surface.
    • The car park does not have a height restriction barrier.
    • Designated Blue Badge parking bays are available.
    • There is/are 3 designated parking bay(s) within the car park.
    • The Blue Badge bay(s) is/are clearly marked and signposted.
    • The dimensions of the designated parking bay(s) are 235cm x 450cm.
    • The Blue Badge parking bays have a marked zone to one side and the rear.
    • The marked zone is 125cm wide.
    • The dimensions of the designated bays do not vary in size.
    • Parking spaces for Blue Badge holders do not need to be booked in advance.
    • The nearest designated bay is 33m (36yd 3in) from the Maxwell Building main entrance.
    • The route from the car park to the building is accessible to a wheelchair user with assistance.
    • Assistance may be required because there is / are slopes/ramps.
    • The car park surface is tarmac.
  • Site/Campus Car Parks View
    • There is a site/campus car park for staff, students and visitors within approximately 200m.
    • The name of the car park is Irwell Place Car Park.
    • The car park is located in Irwell Place.
  • Drop Off Point View
    • There is not a designated drop off point.

Site/Campus Car Park (Irwell Place Car Park)

  • Car Park View
    • The car park is located in Irwell Place.
    • The nearest building(s) to this car park is/are Maxwell Building, Crescent House and Humphrey Booth House and Faraday House.
    • The car park type is open air/surface.
    • The car park does not have a height restriction barrier.
    • The car park surface is tarmac.
    • Designated Blue Badge parking bays are available.
    • The Blue Badge bay(s) is/are clearly marked.
    • There is/are 6 designated Blue Badge parking bay(s) within this car park.
    • The dimensions of the designated parking bay(s) are 230cm x 475cm.
    • The Blue Badge parking bays have a marked zone to one side and the rear.
    • The marked zone is 128cm wide.
    • The dimensions of the designated bays do not vary in size.
  • Charges and Restrictions View
    • This car park can be used by students, visitors, Blue Badge holders, staff permit holders and student permit holders.
    • Parking charges apply for non permit holders.
    • Signs are provided to give information on parking charges/restrictions.
    • Signs are clearly presented.
    • Payment machines are located near the car park entrance and by the Blue Badge bays at the pedestrian exit to Crescent House.
    • There is not a payment machine at a convenient height for wheelchair users.
    • There is a level turning space (minimum 185cm x 210cm) in front of the payment machine(s).
    • Payment cannot be made by phone.
    • To see more information on parking policies please click here (opens new tab).
  • Drop Off Point View
    • There is not a designated drop off point in this car park.
  • Car Park Access View
    • There is step free access from this car park.
    • Buildings are not clearly signposted from this car park.
    • There is a campus map available within the car park.
    • The nearest designated bay is 1m (3ft 3in) from the pedestrian exit of the car park.
    • Parking can be paid for using the 'PayByPhone' app, location number 59323.

Outside Access (Main Entrance)

  • Entrance View
    • This information is for the entrance located at the front of the building.
    • This entrance gives access to the second floor of the building.
    • The entrance area/door is clearly signed.
    • This entrance is signed with 'HOME OF SALFORD BUSINESS SCHOOL'.
    • There is ramped/sloped or stepped access at this entrance.
    • There is a canopy or recess which provides weather protection at this entrance.
    • There is a dark mat or floor marking at this entrance that might be perceived as a hole.
    • The entrance door(s) does not/do not contrast visually with its immediate surroundings.
    • There is not a bell/buzzer.
    • There is not an intercom.
    • A key card is required for access at this entrance.
    • The height of the key card reader is 104cm.
    • The main door(s) open(s) by sliding.
    • There is a push pad/button to exit the main automatic doors.
    • The exit push pad or push button is 104cm from floor level.
    • The door(s) is/are single width.
    • The width of the door opening is 89cm.
    • There is a second set of doors.
    • The door(s) open(s) by sliding.
    • The door(s) is/are double width.
    • The width of the door opening is 150cm.
  • Ramp/Slope View
    • The ramp/slope is located to the right side of the entrance.
    • The gradient of the ramp/slope is steep.
    • The ramp/slope is permanent.
    • There is a level landing at the top of the ramp/slope.
    • There is a/are handrail(s) at the ramp.
    • The handrail(s) is/are on both sides of the ramp.
    • The width of the ramp/slope is 120cm (3ft 11in).
    • The ramp/slope does bypass the step(s).
  • Step(s) View
    • The step(s) is/are located at the front of the entrance.
    • There is/are 6 step(s).
    • The step(s) is/are clearly marked.
    • The height of the step(s) is/are between the recommended 15cm and 18cm.
    • The height of the step(s) is/are 17cm.
    • The depth of the step(s) is/are between 30cm and 45cm.
    • There is a/are handrail(s) at the step(s).
    • The handrail(s) is/are on both sides of the step(s).
    • Handrails are at the recommended height (90cm-100cm).
    • Handrails do cover the flight of stairs throughout its length.
    • Handrails are easy to grip.
    • Handrails do extend horizontally beyond the first and last steps.
    • There is a second lower handrail.

Reception (Main Reception)

  • Reception View
    • The reception point is located to the left as you enter via the main entrance.
    • The reception point is approximately 4m (4yd 1ft) from the main entrance.
    • The reception area/desk is clearly visible from the entrance.
    • There is step-free access to the reception point.
    • There is a clear unobstructed route to the reception point.
    • There are windows, TVs, glazed screens or mirrors at/behind the reception point which could adversely affect the ability of someone to lip read.
    • The reception counter is not placed in front of a background which is patterned.
    • The lighting levels at the reception point are good.
    • The height of the reception counter is 110cm.
    • There is sufficient space to write or sign documents on the counter.
    • There is a lowered section of the counter.
    • The height of the lowered section at the counter is 79cm.
    • There is sufficient space to write or sign documents on the lowered section of the counter.
    • There is a clear knee recess beneath the counter.
    • The counter is staffed.
    • There is not a hearing assistance system at the reception point.
    • The hearing assistance system was tested by an AccessAble surveyor.
    • There is wayfinding signage available at/close to the reception.
    • The type of flooring in the reception area is vinyl.
  • Reception Waiting Area View
    • There is not a waiting area close to the reception point.

Getting Around

  • Access View
    • There is step-free access throughout the building .
  • Circulation View
    • There are doors in corridors/walkways which have to be opened manually.
    • The type of flooring in corridors/walkways is carpet, vinyl and laminate.
    • There is some flooring in corridors/walkways which includes patterns or colours which could be confusing or look like steps or holes to some people.
    • There is some flooring in corridors/walkways which is shiny and could cause issues with glare or look slippery to some people.
    • There is high visual contrast between the walls and floor in the majority of corridors/walkways.
    • There is a mixture of seating with and without armrests at regular intervals.
    • The lighting levels are varied.
  • Signage View
    • Wayfinding signage is provided.
    • The colour, design and typeface of signs is consistent throughout the building.
  • Safe Place(s) View
    • There is a designated place of safety which can be used by people with dementia, autism or learning disabilities.
    • There is a designated quiet place on level 2.
  • Audio View
    • This venue does not play background music in communal areas.
    • There is not a hearing assistance system in the communal areas of the building.
    • There are double automatic doors on the lift and stair landings on levels 5 and 6. They are push pad operated.

Eating and Drinking

  • Location and Access View

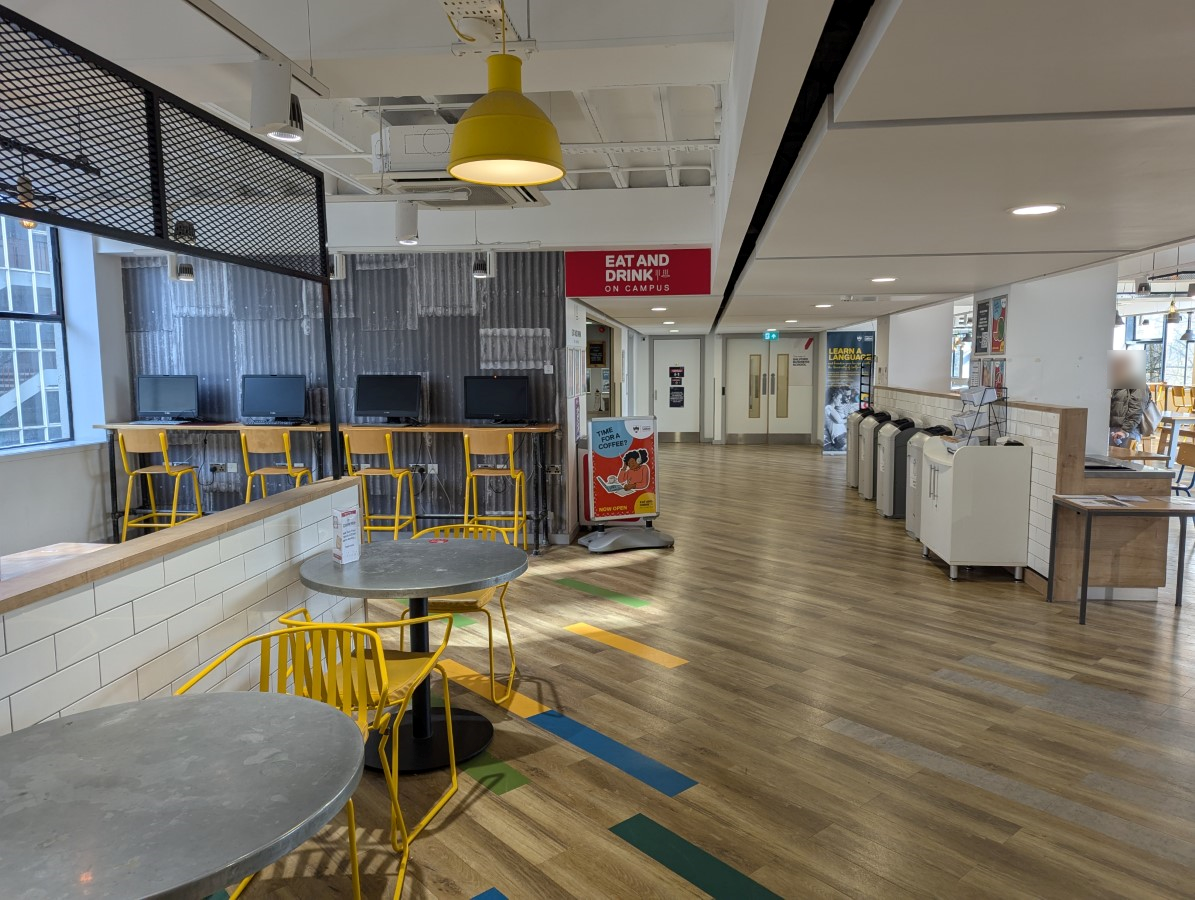

    • The following information is for the food hall.
    • The food hall is located to the left as you enter via the main entrance.
    • There is step-free access to the food hall.
  • Service and Menus View
    • Tables cannot be booked in advance.
    • There is a counter where food and drink can be ordered.
    • Staff can bring food and/or drinks to tables.
    • Menu types include; menu boards.
    • Menus are clearly written.
    • Menus are presented in contrasting colours.
    • Staff can read menus to customers if requested.
    • The type of food served here is hot and cold meals and snacks.
    • Takeaway cups are available.
    • Adapted cups are not available.
    • Adapted cutlery is not available.
    • Drinking straws are available.
    • This area does not play background music.
    • There is not a hearing assistance system.
  • Service Counter(s) View
    • The height of the counter is 87cm.
    • There is not a clear knee recess beneath the low/lowered section of the counter.
    • There is a moveable card machine available for payment.
  • Payment Counter View
    • The height of the counter is 85cm.
    • The height of the tray counter/rail is 87cm.
    • There is a moveable card machine available for payment.
  • Tables and Seating View
    • There is ample room for a wheelchair user to manoeuvre.
    • The majority of tables are accessible to wheelchair users.
    • The distance between the floor and the underside of the lowest dining table is 70cm.
    • The distance between the floor and the underside of the highest dining table is 74cm.
    • The standard height for the underside of dining tables is 70cm.
    • The surface height of the highest table is 107cm.
    • Some tables are permanently fixed.
    • Some chairs are permanently fixed.
    • No chairs have armrests on both sides.
    • There are also high tables, long tables, booths, bench seats and high stools.
    • The type of flooring in this area is laminate.
    • There is some flooring which is shiny and could cause issues with glare or look slippery to some people.
    • The lighting levels are varied.
    • There is also a Subway take-away and shop that sells confectionery, drinks and sandwiches.

Other Floors

  • Stairs View
    • Stairs can be used to access other floors.
    • The stairs are located to the right as you enter via the main entrance.
    • The stairs are approximately 12m from the main entrance.
    • Signs indicating the location of the stairs are not available from the entrance.
    • There are automatic, double doors to enter the stairwell on the ground floor.
    • The floors which are accessible by the stairs are LG - 9.
    • There are 15+ steps between floors.
    • The height of the step(s) is/are between the recommended 15cm and 18cm.
    • The depth of the step(s) is/are between the recommended 30cm and 45cm.
    • The steps are clearly marked.
    • There is a/are handrail(s) at the step(s).
    • The steps have a handrail on both sides.
    • Handrails are at the recommended height (90cm-100cm).
    • Handrails do cover the flight of stairs throughout its length.
    • Handrails are easy to grip.
    • Handrails do not extend horizontally beyond the first and last steps.
    • There is a landing.
    • Clear signs indicating the facilities on each floor are provided on landings.
    • The lighting levels at the steps are good.
  • Other Information View
    • There are also stairs in the centre and other end of the building. The ground floor of this building is named as level 2.

Lift (South)

  • The lift is located to the right as you enter via the main entrance.
  • Signs indicating the location of the lift are not available from the entrance.
  • The lift is approximately 12m (13yd 4in) from the main entrance.
  • The lift is a standard lift.
  • The floors which are accessible by this lift are 2 - 9.
  • The weight limit for the lift is 1050kg.
  • There are automatic, double doors to access the lift lobby on the second floor.
  • Clear signs indicating the facilities on each floor are provided on lift lobby landings.
  • There is a clear level manoeuvring space of 150cm × 150cm in front of the lift.
  • Lift doors do contrast visually with lift lobby walls.
  • The external controls for the lift are within 90cm - 110cm from the floor.
  • The visual contrast between the external lift controls and the control plate is high.
  • The visual contrast between the external lift control plate and the wall is high.
  • The clear door width is 130cm (4ft 3in).
  • The dimensions of the lift are 170cm x 130cm (5ft 7in x 4ft 3in).
  • There are not separate entry and exit doors in the lift.
  • There is a mirror to aid reversing out of the lift.
  • There is not a list of floor services available within the lift.
  • The lift does have a visual floor indicator.
  • The lift does have an audible announcer.
  • The internal controls for the lift are within 90cm - 120cm from the floor.
  • There is a hearing loop system.
  • The lift does have Braille markings.
  • The lift does have tactile markings.
  • The lighting levels in the lift are low to moderate.
  • There is a/are similar lift(s) available.
  • There are additional lifts that cover all floors in the centre of the building and to the far end of the building.

Lift (North Side)

  • The lift is located to the left side of the building.
  • Signs indicating the location of the lift are not available from the entrance.
  • The lift is approximately 100m (109yd 1ft) from the main entrance.
  • The lift is a standard lift.
  • The floors which are accessible by this lift are 1 - 9.
  • The weight limit for the lift is 1050kg.
  • Clear signs indicating the facilities on each floor are provided on lift lobby landings.
  • There is a clear level manoeuvring space of 150cm × 150cm in front of the lift.
  • Lift doors do contrast visually with lift lobby walls.
  • The external controls for the lift are within 90cm - 110cm from the floor.
  • The visual contrast between the external lift controls and the control plate is high.
  • The visual contrast between the external lift control plate and the wall is high.
  • The clear door width is 130cm (4ft 3in).
  • The dimensions of the lift are 183cm x 127cm (6ft x 4ft 2in).
  • There are not separate entry and exit doors in the lift.
  • There is a mirror to aid reversing out of the lift.
  • There is not a list of floor services available within the lift.
  • The lift does have a visual floor indicator.
  • The lift does have an audible announcer.
  • The internal controls for the lift are within 90cm - 120cm from the floor.
  • There is a hearing loop system.
  • The lift does have Braille markings.
  • The lift does have tactile markings.
  • The lighting levels in the lift are low to moderate.

Quiet Space(s) (Faith Centre/Quiet Room - Room 206)

  • Signage for the room(s) is available in upper and lower case lettering that is clearly visible on or near the door.
  • The corridor outside the room(s) is sufficiently wide enough (150cm+) to allow wheelchair users to pass.
  • There is step free access into the room(s) from the corridor.
  • The door opening width(s) is/are 75cm+ for the room(s).
  • The door(s) for the room(s) is/are not push pad activated.
  • There is not a hearing assistance system for the room(s).
  • There is not a visual fire alarm beacon in the room(s).
  • There is not fixed furniture within the room(s).
  • There are no chairs with armrests on both sides within the room(s).
  • The room does have an unobstructed minimum turning space of 150cm x 150cm.
  • Floor coverings in the room(s) are even with no trip hazards.

Entrance (Language Resource)

  • Entrance View
    • This information is for the entrance located on the ninth floor opposite the lift.
    • This entrance gives access to Language Resource Centre.
    • This entrance is signed with 'Language Resource Centre'.
    • There is step-free access at this entrance, via lift.
    • The entrance door(s) does not/do not contrast visually with its immediate surroundings.
    • There is not a bell/buzzer.
    • There is not an intercom.
    • The main door(s) open(s) automatically (towards you).
    • There is a push pad/button to enter and exit the main automatic doors.
    • The entry push pad or push button is 90cm from floor level.
    • The exit push pad or push button is 89cm from floor level.
    • The door(s) is/are double width.
    • The width of the door opening is 147cm.

Counter (Language Resource Centre)

  • Counter View
    • The counter is located on the right as you enter the language resource centre.
    • The counter is approximately 9m (9yd 2ft) from the Language Resource Centre entrance.
    • The counter is clearly visible from the entrance.
    • There is step-free access to the counter.
    • There is a clear unobstructed route to the counter.
    • There are no windows, TVs, glazed screens or mirrors at/behind the counter which could adversely affect the ability of someone to lip read.
    • The counter is placed in front of a background which is patterned.
    • The lighting levels at the counter are good.
    • The height of the counter is high (110cm+).
    • There is sufficient space to write or sign documents on the counter.
    • There is not a lowered section of the counter.
    • The counter is staffed.
    • There is not a hearing assistance system at the counter.
    • There is wayfinding signage available at/close to the reception.
    • The type of flooring in this area is carpet.
  • Waiting Area View
    • There is not a waiting area close to the counter.
    • There is sufficient space for a wheelchair user to use the waiting area.

Medical Centre

  • The Medical centre is on level 3 to the right when exiting the lift,
  • There are double doors which open away from you with an opening width of 176cm.
  • There is a counter to the left as you enter, the counter is 111cm high.
  • There is a lowered section with knee recess, and is 76cm high.

Standard Shower

  • Shower facilities are available.
  • The shower(s) surveyed is/are located on level 4 of the building, to the right when exiting the lift.
  • There is not level access to the shower facilities.
  • There a medium step measuring 15cm to enter the shower cubicle.

Toilet with Adaptations (Level Two - Right Hand Transfer)

  • Location and Access View
    • This accessible toilet is located to the left, just past the eating area.
    • This accessible toilet is approximately 27m (88ft) from the main entrance.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is required for the accessible toilet.
    • The key is a radar key.
    • The key can be obtained from a member of staff on the main reception desk.
    • There is ‘Not All Disabilities Are Visible’, written text, pictorial, tactile and Braille signage on or near the toilet door.
    • The visual contrast between the external door and wall is low.
    • The door opens outwards.
    • The door is light.
    • The door is locked by a locking handle.
    • The width of the accessible toilet opening is 87cm (2ft 10in).
    • The visual contrast between the internal door and wall is low.
    • The door has a horizontal grab rail.
    • The visual contrast between the horizontal grab rail and internal door is low.
  • Toilet Features View
    • The dimensions of the accessible toilet are 146cm x 198cm (4ft 9in x 6ft 5in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The lighting levels are moderate to good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the right.
    • The lateral transfer space is 75cm (2ft 5in).
    • The transfer space is obstructed by a female sanitary bin.
    • There is a flush on the transfer side.
    • There is a spatula type lever flush.
    • There is a dropdown rail on the transfer side.
    • The visual contrast between the dropdown rail(s) and wall is low.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The visual contrast between the wall-mounted grab rail(s) and wall is low.
    • The visual contrast between the walls and floor is high.
    • There is an emergency alarm .
    • The emergency pull cord alarm is fully functional.
    • There is not a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are female sanitary disposal units.
    • There is not a/are not coat hook(s).
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a cistern.
    • There is a lid attached to the toilet seat.
    • The height of the toilet seat above floor level is 48cm (1ft 6in).
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 107cm (3ft 6in).
    • The visual contrast between the toilet roll holder and the wall is high.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 69cm (2ft 3in).
    • There is a vertical wall-mounted grab rail on the right hand side of the wash basin.
    • The visual contrast between the wash basin wall-mounted grab rail(s) and wall is low.
    • The wash basin tap type is lever mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser can be reached from seated on the toilet.
    • The height of the soap dispenser is 93cm .
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is not placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 97cm (3ft 2in) .
    • The visual contrast between the hand dryer and the wall is low.

Toilet with Adaptations (Level Three - Left Hand Transfer)

  • There is an/are accessible toilet(s) available.
  • Location and Access View
    • This accessible toilet is located on level 3, to the right as you exit the lift on the left side of the building.
    • This accessible toilet is approximately 5m (5yd 1ft) from the lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is tactile and pictorial signage on or near the toilet door.
    • The visual contrast between the external door and wall is high.
    • The door opens outwards.
    • The door is light.
    • The door is locked by a locking handle.
    • The width of the accessible toilet opening is 85cm (2ft 9in).
    • The visual contrast between the internal door and wall is high.
    • The door has a horizontal grab rail.
    • The visual contrast between the horizontal grab rail and internal door is high.
  • Toilet Features View
    • The dimensions of the accessible toilet are 290cm x 202cm (9ft 6in x 6ft 8in).
    • The accessible toilet does have an unobstructed minimum turning space of 150cm x 150cm.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the left.
    • The lateral transfer space is 130cm (4ft 3in).
    • There is a flush, however it is not on the transfer side.
    • There is a spatula type lever flush.
    • There is a dropdown rail on the transfer side.
    • The visual contrast between the dropdown rail(s) and wall is low.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The visual contrast between the wall-mounted grab rail(s) and wall is low.
    • The visual contrast between the walls and floor is high.
    • There is an emergency alarm.
    • The alarm did not sound when tested.
    • Disposal facilities are available in the toilet.
    • There is a/are female sanitary, general waste (with no lid) and clinical waste disposal units.
    • There is not a/are not coat hook(s).
  • Additional Fixtures View
    • There is not a mirror.
    • There is not a shelf within the accessible toilet.
    • The toilet has a cistern.
    • There is a lid attached to the toilet seat.
    • The height of the toilet seat above floor level is 46cm (1ft 6in).
    • The toilet seat visual contrast is low.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 120cm (3ft 11in).
    • The visual contrast between the toilet roll holder and the wall is medium.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 73cm (2ft 5in).
    • There is a vertical wall-mounted grab rail on the left hand side of the wash basin.
    • The visual contrast between the wash basin wall-mounted grab rail(s) and wall is low.
    • The wash basin tap type is lever mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser cannot be reached from seated on the toilet.
    • The height of the soap dispenser is 110cm.
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 110cm (3ft 7in).
    • The visual contrast between the hand dryer and the wall is medium.
  • Baby Changing Facilities View
    • Baby changing facilities are located within the accessible toilet.
    • There is a flip down baby change table available.
    • The height of the baby change table is 96cm.
  • Comments View
    • The baby change is located in the cubicle next to the accessible toilet. There is an adjustable changing table within this room, the length is 153 cm.

Toilet with Adaptations (Level Seven - Left Hand Transfer)

  • Location and Access View
    • This accessible toilet is located on level 7 to the right when exiting the lift on the left side of the building.
    • This accessible toilet is approximately 4m (13ft) from the lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is pictorial signage on or near the toilet door.
    • The visual contrast between the external door and wall is high.
    • The door opens by sliding.
    • The door is heavy.
    • The door is locked by a twist lock.
    • The width of the accessible toilet opening is 84cm (2ft 9in).
    • The visual contrast between the internal door and wall is high.
    • The door has a horizontal grab rail.
    • The visual contrast between the horizontal grab rail and internal door is high.
  • Toilet Features View
    • The dimensions of the accessible toilet are 148cm x 228cm (4ft 10in x 7ft 5in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The height of the light switch/pull cord is 78cm from floor level.
    • The lighting levels are moderate to good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the left.
    • The lateral transfer space is 82cm (2ft 8in).
    • The transfer space is obstructed by a female sanitary bin.
    • There is a flush on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail on the transfer side.
    • The visual contrast between the dropdown rail(s) and wall is high.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The visual contrast between the wall-mounted grab rail(s) and wall is high.
    • The visual contrast between the walls and floor is low.
    • There is an emergency alarm .
    • The emergency pull cord alarm was out of reach (higher than 10cm (4") from floor) when surveyed.
    • There is not a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are female sanitary disposal units.
    • There is not a/are not coat hook(s).
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a cistern.
    • There is a lid attached to the toilet seat.
    • The height of the toilet seat above floor level is 48cm (1ft 6in).
    • The toilet seat visual contrast is low.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 106cm (3ft 5in).
    • The visual contrast between the toilet roll holder and the wall is high.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 73cm (2ft 4in).
    • There is a vertical wall-mounted grab rail on the left hand side of the wash basin.
    • The visual contrast between the wash basin wall-mounted grab rail(s) and wall is high.
    • The wash basin tap type is lever mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser cannot be reached from seated on the toilet.
    • The height of the soap dispenser is 100cm .
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 113cm (3ft 8in) .
    • The visual contrast between the hand dryer and the wall is high.

Toilet with Adaptations (Level Nine - Left Hand Transfer)

  • Location and Access View
    • This accessible toilet is located on level 9 to the right when exiting the lift on the left side of the building.
    • This accessible toilet is approximately 3m (9ft) from the lift.
    • There is step-free access into the accessible toilet.
    • This is a shared toilet.
    • A key is not required for the accessible toilet.
    • There is pictorial signage on or near the toilet door.
    • The visual contrast between the external door and wall is high.
    • The door opens outwards.
    • The door is heavy.
    • The door is locked by a twist lock.
    • The width of the accessible toilet opening is 84cm (2ft 9in).
    • The visual contrast between the internal door and wall is high.
    • The door does not have a horizontal grab rail.
  • Toilet Features View
    • The dimensions of the accessible toilet are 158cm x 189cm (5ft 2in x 6ft 2in).
    • The accessible toilet does not have an unobstructed minimum turning space of 150cm x 150cm.
    • The lighting levels are good.
    • There is a lateral transfer space.
    • As you face the toilet pan the transfer space is on the left.
    • The lateral transfer space is 85cm (2ft 9in).
    • There is a flush, however it is not on the transfer side.
    • There is not a spatula type lever flush.
    • There is a lever flush.
    • There is a dropdown rail on the transfer side.
    • The visual contrast between the dropdown rail(s) and wall is medium.
    • There is a/are wall-mounted grab rail(s) available.
    • As you face the toilet the wall-mounted grab rail(s) is/are on both sides.
    • There is a vertical wall-mounted grab rail on the transfer side.
    • There is a horizontal wall-mounted grab rail on the opposite side of the seat to the transfer space.
    • The visual contrast between the wall-mounted grab rail(s) and wall is medium.
    • The visual contrast between the walls and floor is medium.
    • There is an emergency alarm .
    • The emergency pull cord alarm was out of reach (higher than 10cm (4") from floor) when surveyed.
    • There is not a red flashing fire alarm beacon within the toilet.
    • Disposal facilities are available in the toilet.
    • There is a/are female sanitary disposal units.
    • There is not a/are not coat hook(s).
  • Additional Fixtures View
    • There is a mirror.
    • The mirror is not placed at a lower level or at an angle for ease of use.
    • There is not a shelf within the accessible toilet.
    • The toilet has a backrest and a cistern.
    • The height of the toilet seat above floor level is 48cm (1ft 6in).
    • The toilet seat visual contrast is low.
    • There is a toilet roll holder.
    • The toilet roll holder can be reached from seated on the toilet.
    • The toilet roll holder is placed higher than 100cm (3ft 3in).
    • The height of the toilet roll holder is 114cm (3ft 8in).
    • The visual contrast between the toilet roll holder and the wall is medium.
    • There is a wash basin.
    • The wash basin and tap(s) can be reached from seated on the toilet.
    • The wash basin is not placed higher than 74cm (2ft 5in).
    • The height of the wash basin is 72cm (2ft 4in).
    • There is a vertical wall-mounted grab rail on the left hand side of the wash basin.
    • The visual contrast between the wash basin wall-mounted grab rail(s) and wall is medium.
    • The wash basin tap type is lever mixer.
    • There is a wall fixed soap dispenser.
    • The soap dispenser can be reached from seated on the toilet.
    • The height of the soap dispenser is 100cm .
    • There is not a towel dispenser.
    • There is a hand dryer.
    • The hand dryer is not placed higher than 100cm (3ft 3in).
    • The height of the hand dryer is 95cm (3ft 1in) .
    • The visual contrast between the hand dryer and the wall is medium.

Standard Toilet(s)

  • Standard toilet facilities are available.
  • Toilet Facilities View
    • The female toilet is located on stair landing 7 - 8.
    • There is stepped access into the toilet(s).
    • The visual contrast between the external toilet door(s) and wall(s) is high.
    • There is pictorial signage on or near the toilet door.
    • An ambulant toilet cubicle is not available.
    • The height of the wash basin(s) is 83cm.
    • The wash basin(s) tap type is push.
    • Lighting levels are good.
  • Toilet Facilities 2 View
    • The male toilet is located on level 3.
    • There is step-free access into the toilet(s).
    • The standard toilet(s) is/are approximately 3m from the lift to the right.
    • The visual contrast between the external toilet door(s) and wall(s) is high.
    • There is pictorial signage on or near the toilet door.
    • An ambulant toilet cubicle is not available.
    • The height of the wash basin(s) is 80cm.
    • The wash basin(s) tap type is push.
